    Introduction：
    DP (Display Port) is an image display interface that supports not only Full HD display resolution (1920×1080)
    Current rating: 0.5A max
    Dielectric withstanding voltage: 500V AC R.M.S for one minute
    Insulation resistance: 100MΩ min at 500V dc
    Contact resistance: 30MΩ max
    Operating temperature: -25℃~+85℃
    Durability 10000 cycles.
    Mating force: 4.5kgf max
    Unmating force: 1.0kgf min

    GET A QUOTE


    Product Description

    DP (Display Port) is an image display interface that supports not only Full HD display resolution (1920×1080), but also 4K resolution (3840×2160), and the latest 8K resolution (7680×4320). DP not only have high transmission rate, but also reliable and stable.The signal transmitted by the port is composed of the data channel signal of the transmitted image and the auxiliary channel signal of the transmission of image-related status and control information, specifically including DisplayPort data transmission main channel (Main Link), auxiliary channel (AUX Channel) and connection (Link Training).
    Current rating: 0.5A max
    Dielectric withstanding voltage: 500V AC R.M.S for one minute
    Insulation resistance: 100MΩ min at 500V dc
    Contact resistance: 30MΩ max
    Operating temperature: -25℃~+85℃
    Durability 10000 cycles.
    Mating force: 4.5kgf max
    Unmating force: 1.0kgf min

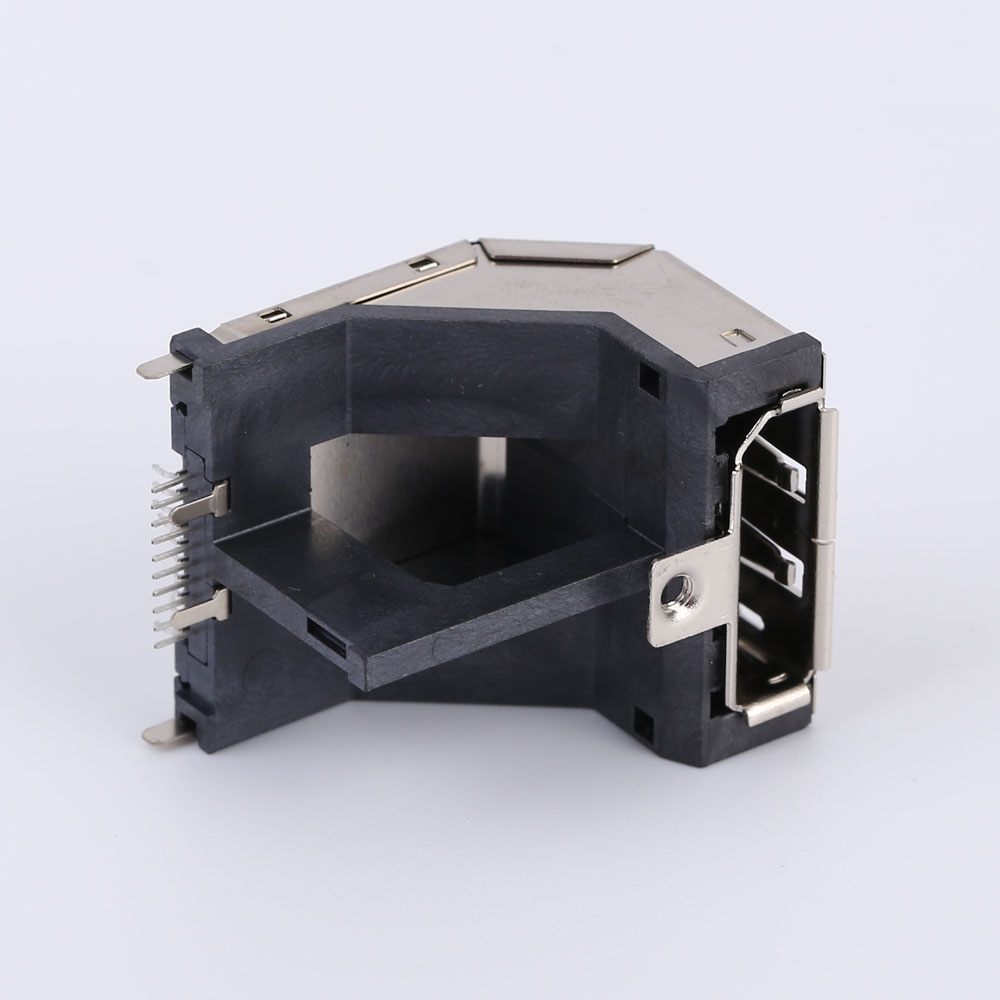

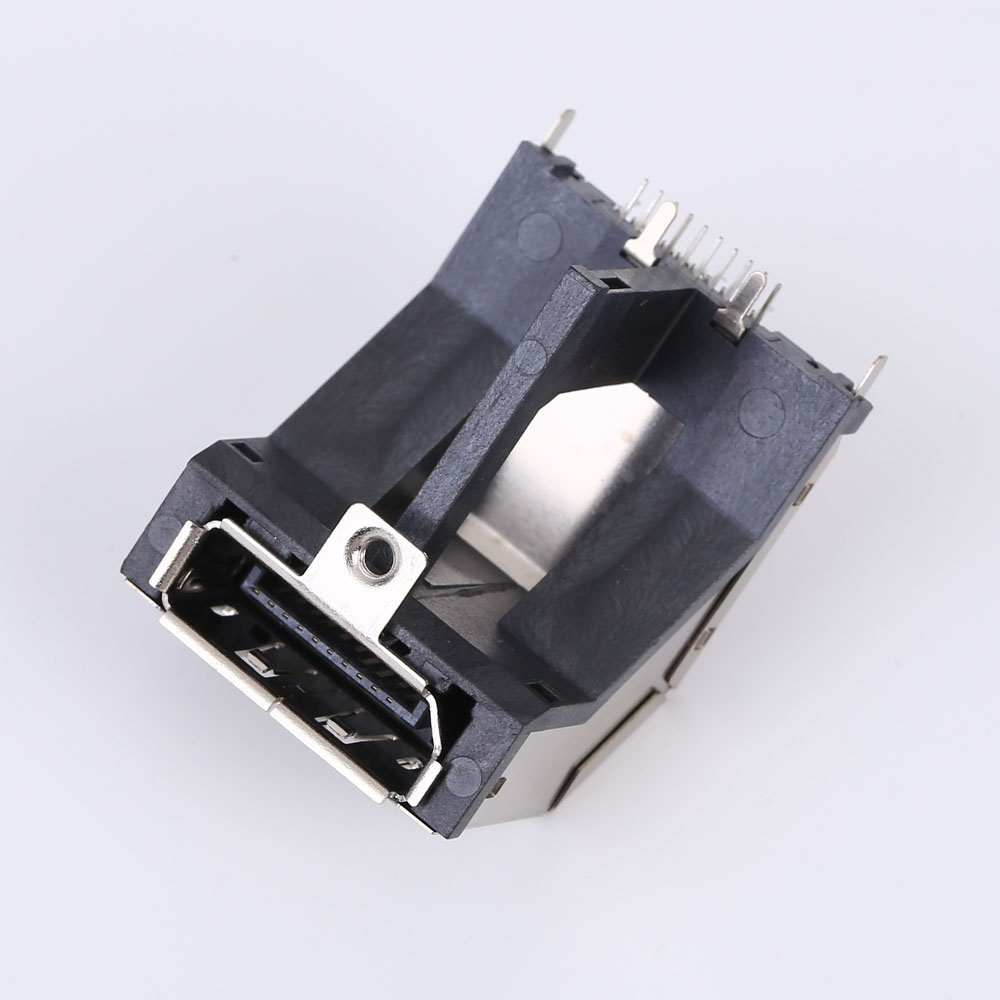

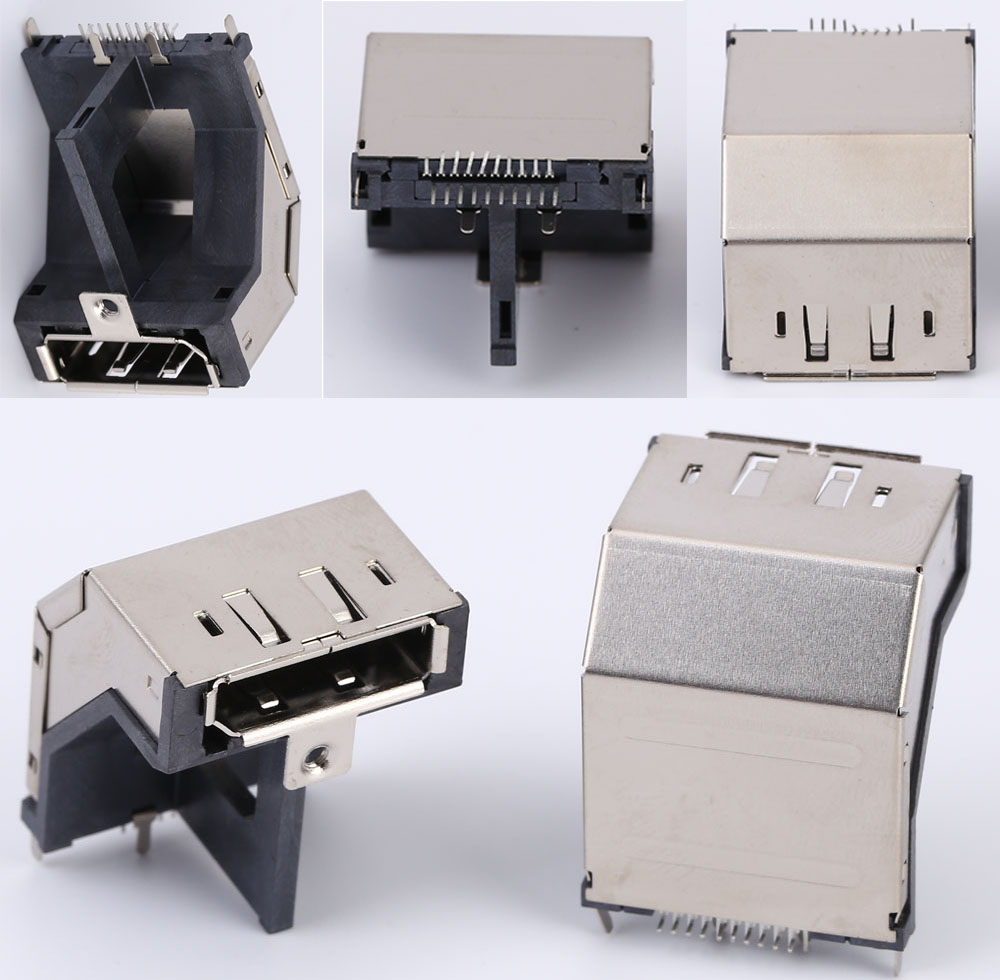

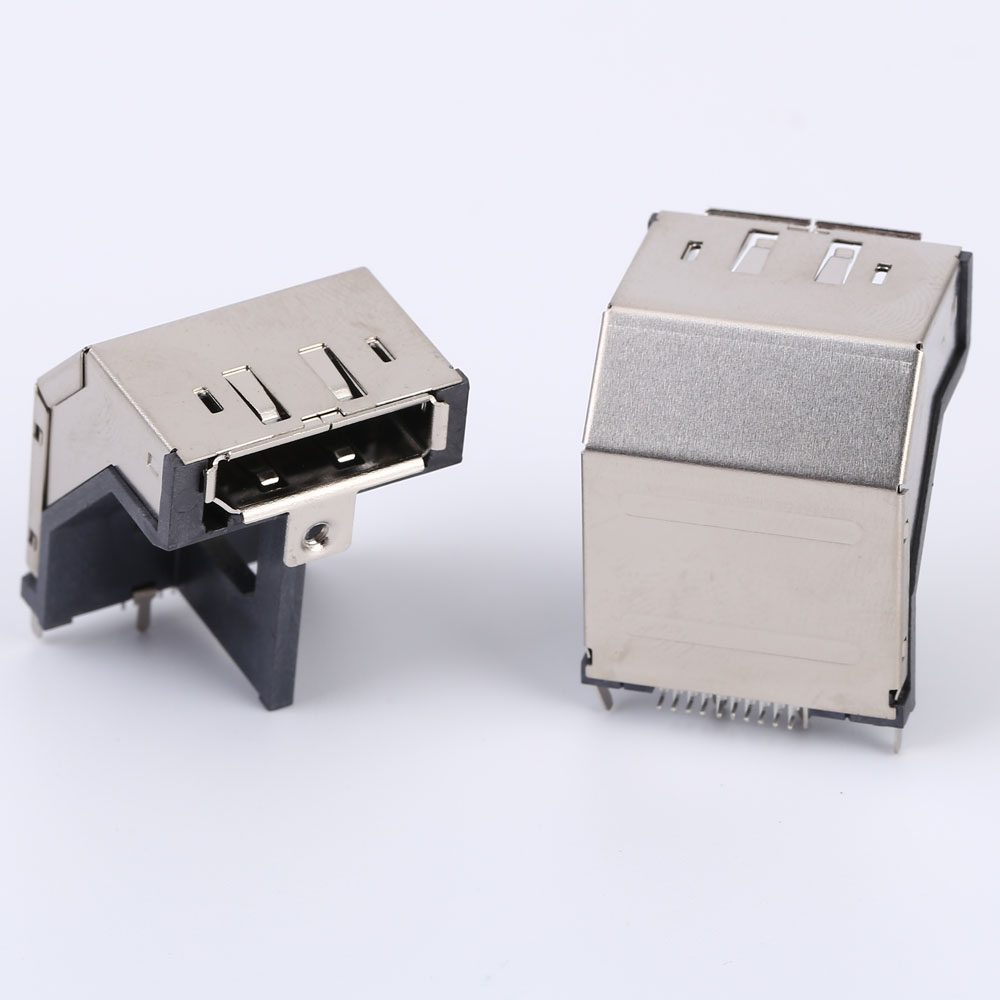

    Yoda Displayport Connector R_a Smt Female Type


    Features

    Type: DisplayPort Standard Connectors
    Brand: YODA, ODM
    Packaging: Packing box
    Application area: Computer, industrial control
    Working frequency: High frequency
    Characteristic: Fire resistance/flame retardant
    Processing customization: Yes
    Manufacturing process: Stamping injection molding
    Contact material: Brass,Au Plated
    Interface Type: D-SUB
    Shape: Rectangle

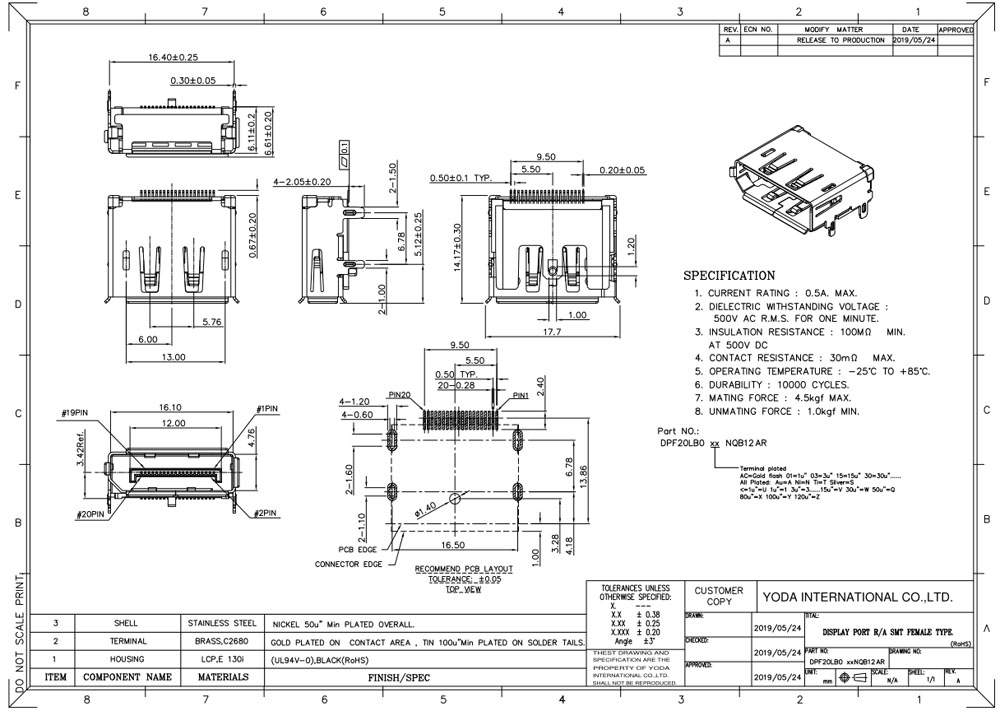

    Yoda Displayport Connector R_a Smt Female Type Drawing


    Manufacture Ability


    Yoda Electronic Connector Manufacture Ability


    Certifications


    Yoda Connector Certifications


    Application Area


    Yoda D-sub Connectors were widely used and always popular connection for data transmissions. Installed in many electronic modules for signal transmission.

    Yoda D-sub Connectors Application Area
