    Double D-SUB+VGA 9 Pin Connector

    Introduction：
    Model number: COM+VGA Connector
    Description: D-Sub dr9 male with hdr15 female connector
    Contact resistance: 20mΩ max
    Insulation resistance: 1000MΩ min
    Insulator: PBT
    Packaging: blister & reel packing
    Contact: copper alloy

    GET A QUOTE


    Product Description

    Model number: COM+VGA Connector
    Description: D-Sub dr9 male with hdr15 female connector
    Contact resistance: 20mΩ max
    Insulation resistance: 1000MΩ min
    Insulator: PBT
    Packaging: recyclable carton
    Contact: copper alloy
    Usage: electric appliance
    Package: blister & reel packing

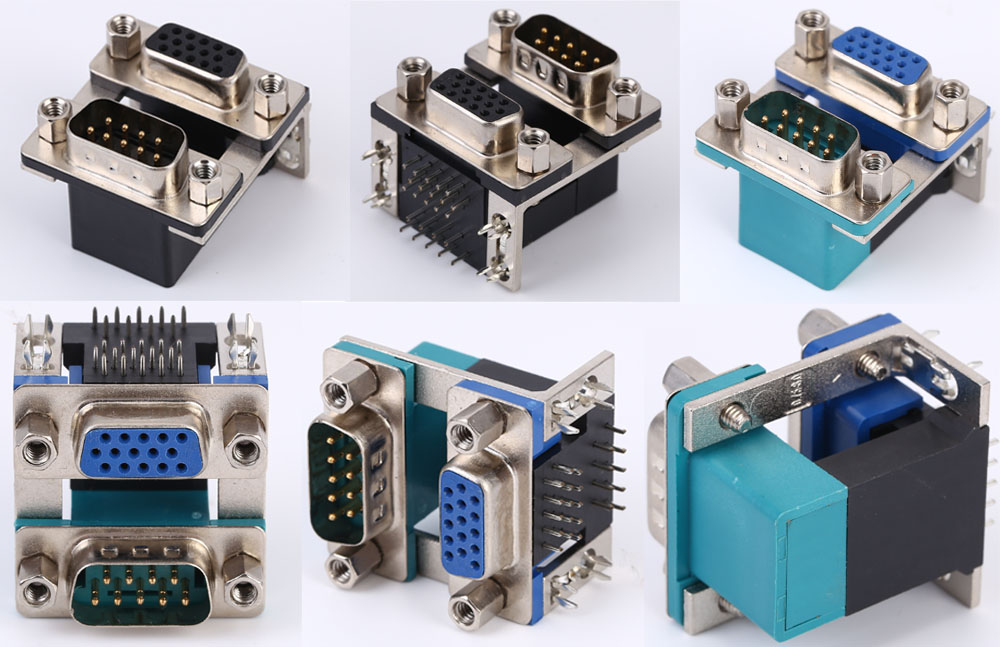

    Yoda Double D-SUB+VGA 9 Pin Connector


    Features

    Electrical performance
    1. Current rating:1.5a
    2. Llcr: 40mΩ max (initial)
    3. Insulation resistance: unmated: 100MΩ min
    4. Dielectric withstand voltage: 100v/ac
    5. Operating temperature range: -25℃~85℃
    6. Rohs compliant or halogen free compliant



    Manufacture Ability


    Yoda Electronic Connector Manufacture Ability


    Certifications


    Yoda Connector Certifications


    Application Area


    Yoda D-sub Connectors were widely used and always popular connection for data transmissions. Installed in many electronic modules for signal transmission.

    Yoda Double D-SUB+VGA 9 Pin Connector Applicartion
