    Introduction：
    Name: HDR 15P(F) Elevated Plastic bracket, Pin Lock connector
    Orientation: Straight / Right Angle
    Housing Material: Plastic/ Steel/ Zinc/ Metal
    Contact body material: Brass/ Phosphor Bronze
    Application: Industrial Process Automation and Control Drives
    Electrical: Rated load 0.5A 30V DC
    Contact resistance: 30MΩ Max
    Insulation resistance: 100 MΩ Min.AT 500V DC
    Dielectric Withstand Voltage: 500V AC for 1 minute Min.
    Mechanical: Insertion force 0.75 lbs max.
    Extraction force: 0.44 lbs min.
    Life: 5000 Times
    Operating temperature: -40°C to +70°C
    Packaging: Plastic Bag (Inner)+Carton(Outter)

    GET A QUOTE


    Product Description

    Name:HDR 15P(F) Elevated Plastic bracket Pin Lock connector
    Application: Computer, industrial control
    Working frequency: High frequency
    Characteristic: Fire resistance / flame retardant
    Processing customization: Yes
    Manufacturing process: Stamping injection molding
    Contact material: Brass,Au Plated
    Electrical: Rated load 0.5A 30V DC
    Contact resistance: 30MΩ Max
    Insulation resistance: 100 MΩ Min.AT 500V DC
    Dielectric Withstand Voltage: 500V AC for 1 minute Min.
    Mechanical: Insertion force 0.75 lbs max.
    Extraction force: 0.44 lbs min.
    Life: 5000 Times
    Operating temperature: -40°C to +70°C
    Packaging: Plastic Bag (Inner)+Carton(Outter)

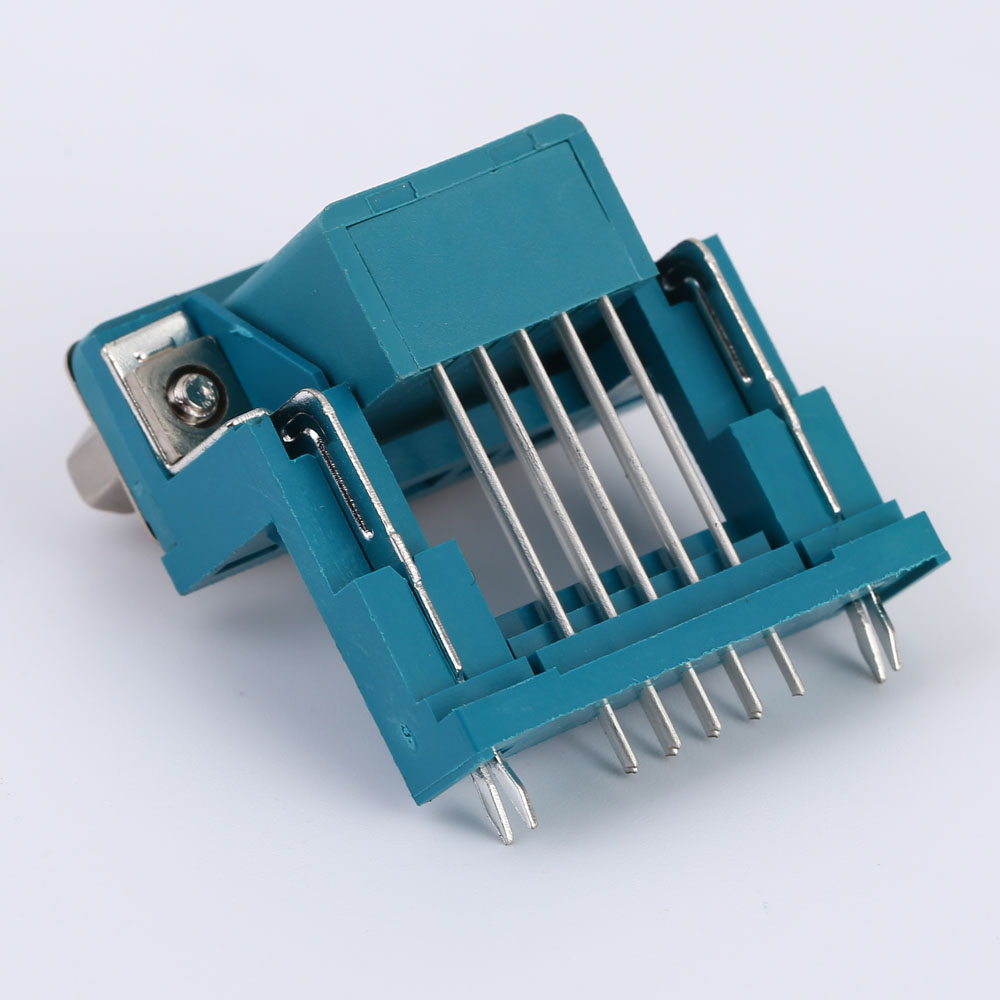

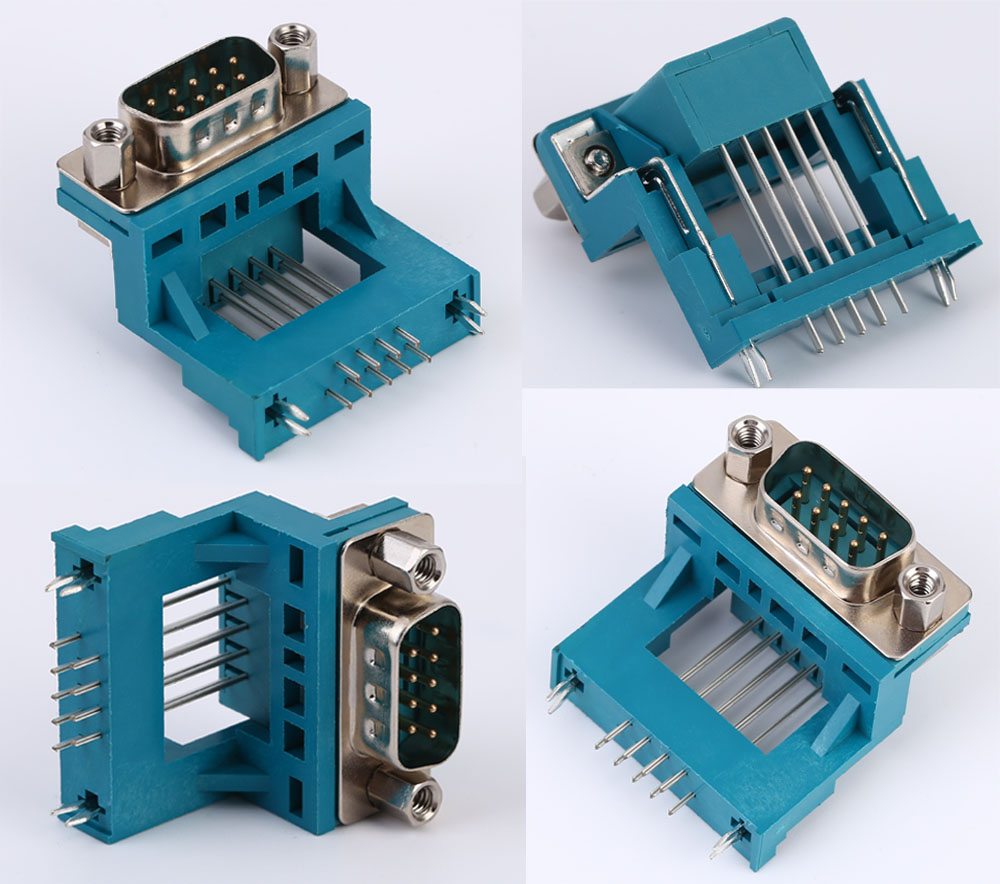

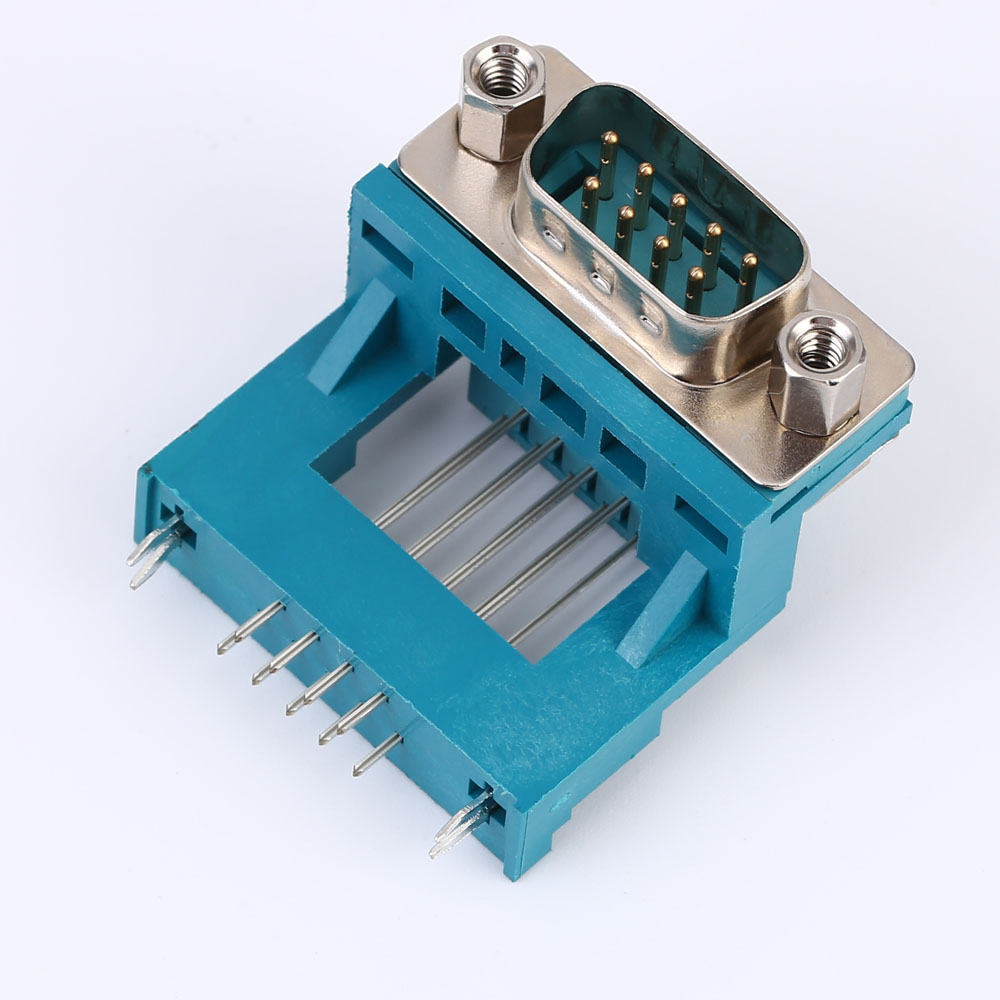

    Yoda D-sub 9 Pin Connector


    Features

    Type: D-Sub Standard Connectors
    Brand: YODA, ODM
    Packaging: Packing box
    Description: DB9 CONNECTOR
    Gender: Male/Female
    Pins: 9P
    Application area: Computer, industrial control
    Working frequency: High frequency
    Characteristic: Fire resistance/flame retardant
    Processing customization: Yes
    Manufacturing process: Stamping injection molding
    Contact material: Brass,Au Plated
    Interface Type: D-SUB
    Shape: Rectangle

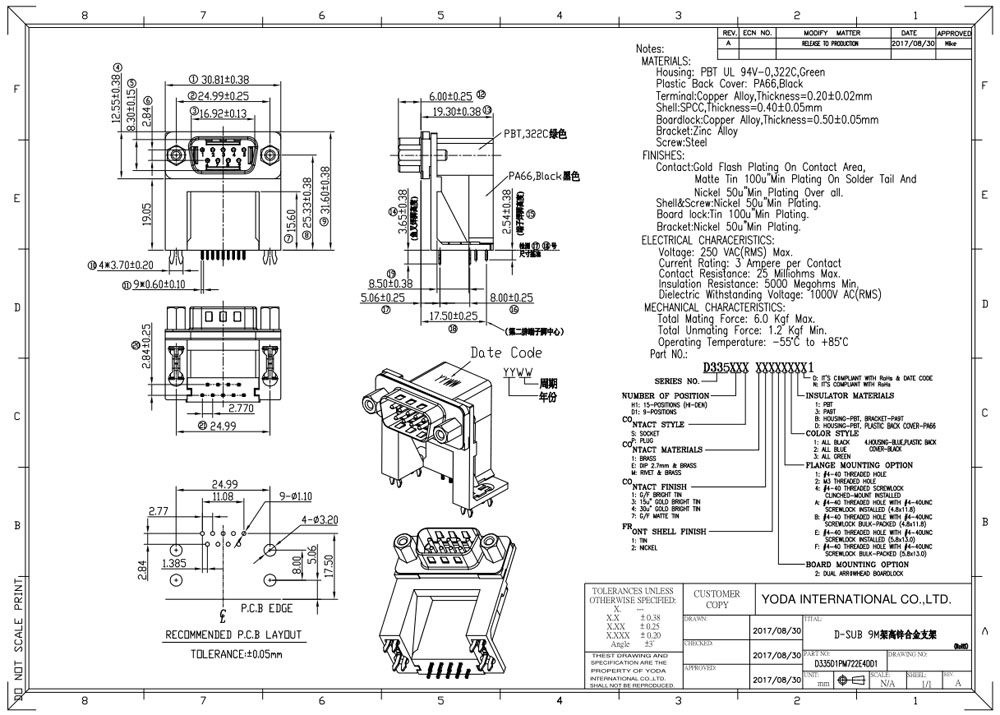

    Yoda D-sub 9 Pin Connector Drawing


    Manufacture Ability


    Yoda Electronic Connector Manufacture Ability


    Certifications


    Yoda Connector Certifications


    Application Area


    Yoda D-sub Connectors were widely used and always popular connection for data transmissions. Installed in many electronic modules for signal transmission.

    Yoda D-sub Connectors Application Area
