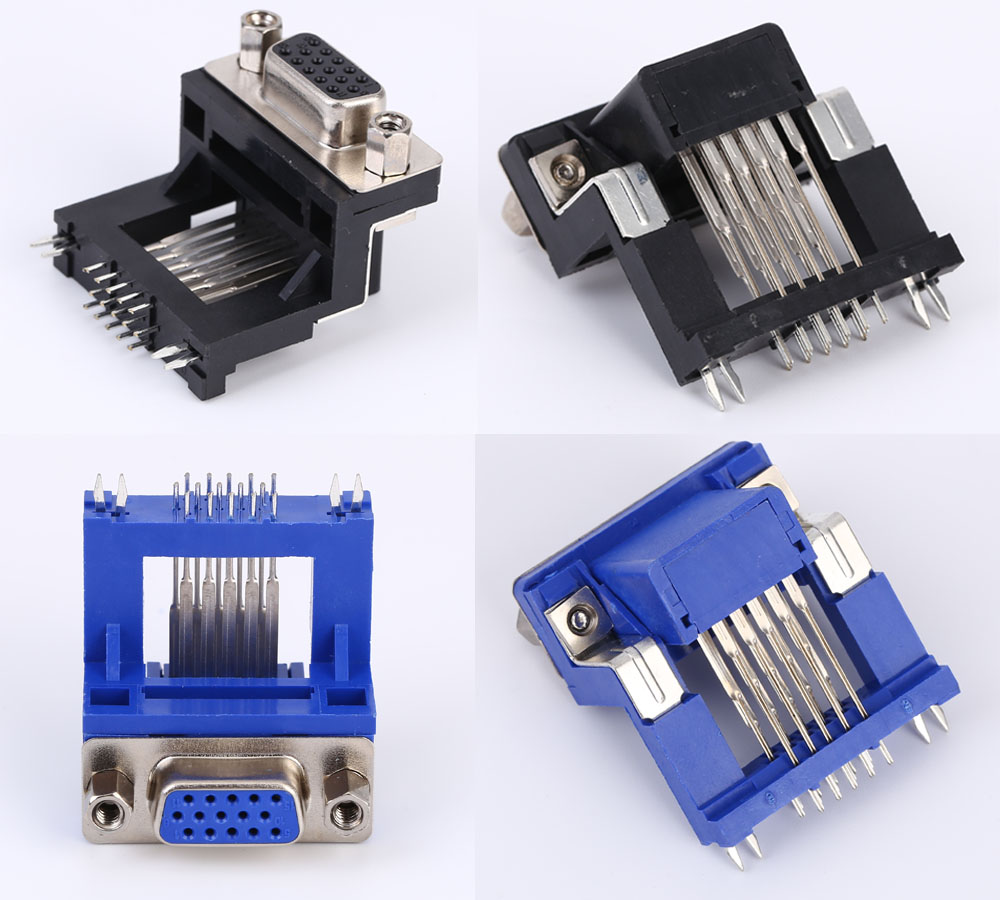

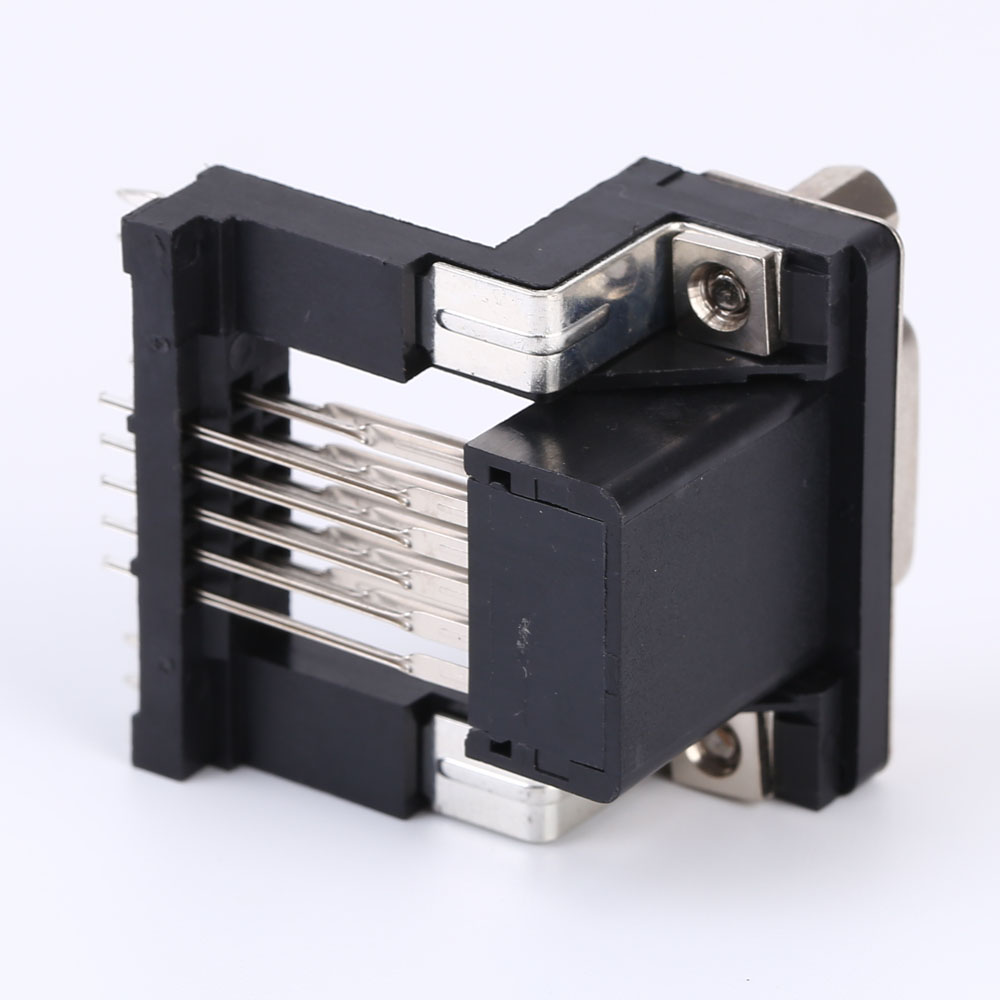

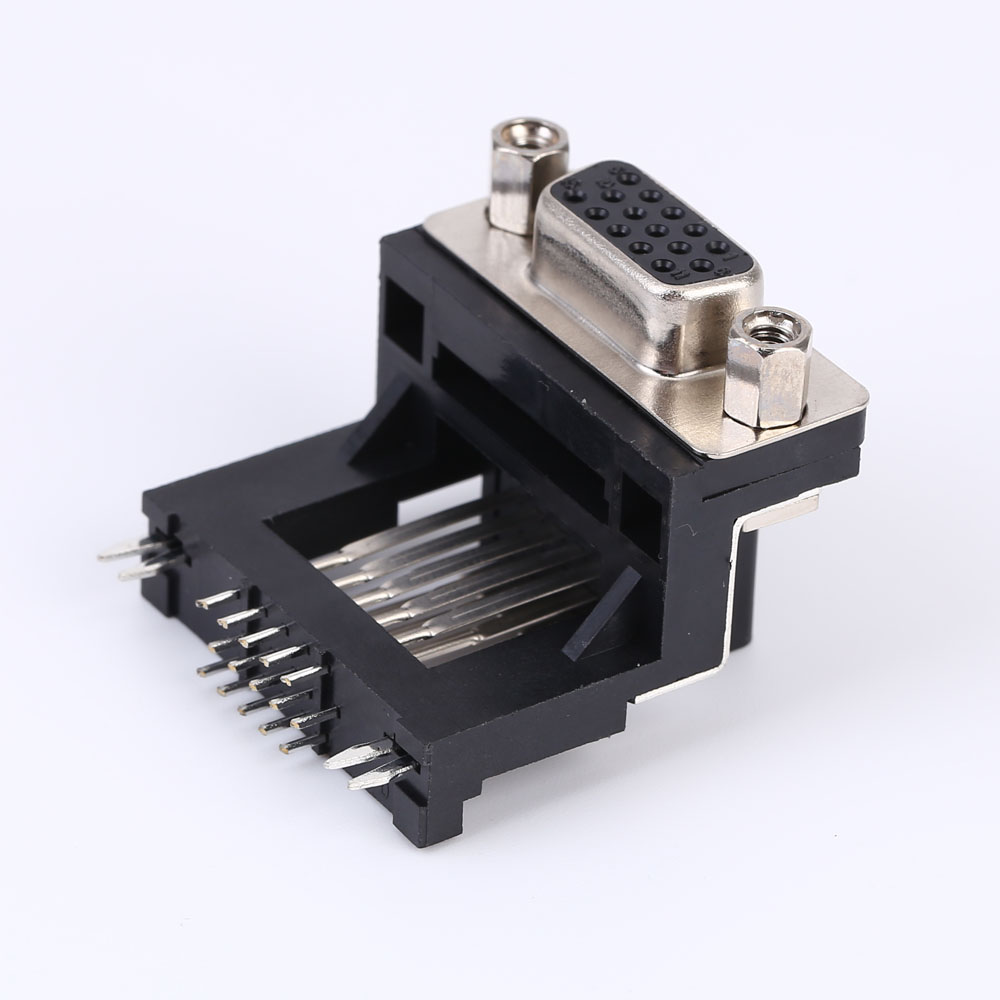

    • Yoda Black D-SUB 15 Pin Connector Yoda Black D-SUB 15 Pin Connector
    Yoda Black D-SUB 15 Pin Connector Yoda Black D-SUB 15 Pin Connector
    Yoda Blue D-SUB 15 Pin Connector Yoda Blue D-SUB 15 Pin Connector

    D-SUB 15 Pin Connector

    Introduction：
    Name: HDR 15P(F) Elevated Plastic bracket Pin Lock connector
    Application: Computer, industrial control
    Working frequency: High frequency
    Characteristic: Fire resistance / flame retardant
    Processing customization: Yes
    Manufacturing process: Stamping injection molding
    Contact material: Brass,Au Plated
    Electrical: Rated load 0.5A 30V DC
    Contact resistance: 30MΩ Max
    Insulation resistance: 100 MΩ Min.AT 500V DC
    Dielectric Withstand Voltage: 500V AC for 1 minute Min.
    Mechanical: Insertion force 0.75 lbs max.
    Extraction force: 0.44 lbs min.
    Life: 5000 Times
    Operating temperature: -40°C to +70°C
    Packaging: Plastic Bag (Inner)+Carton(Outter)

    GET A QUOTE


    Product Description

    Name: HDR 15P(F) Elevated Plastic bracket Pin Lock connector
    Application: Computer, industrial control
    Working frequency: High frequency
    Characteristic: Fire resistance / flame retardant
    Processing customization: Yes
    Manufacturing process: Stamping injection molding
    Contact material: Brass,Au Plated
    Electrical: Rated load 0.5A 30V DC
    Contact resistance: 30MΩ Max
    Insulation resistance: 100 MΩ Min.AT 500V DC
    Dielectric Withstand Voltage: 500V AC for 1 minute Min.
    Mechanical: Insertion force 0.75 lbs max.
    Extraction force: 0.44 lbs min.
    Life: 5000 Times
    Operating temperature: -40°C to +70°C
    Packaging: Plastic Bag (Inner)+Carton(Outter)

    Yoda D-sub 15 Pin Connector


    Features

    Type: D-Sub Standard Connectors
    Packaging: Packing box
    Description: HDB CONNECTOR
    Gender: Female
    Pins: 15P
    Application area: Computer, industrial control
    Working frequency: High frequency
    Characteristic: Fire resistance / flame retardant
    Processing customization: Yes
    Manufacturing process: Stamping injection molding
    Contact material: Brass,Au Plated

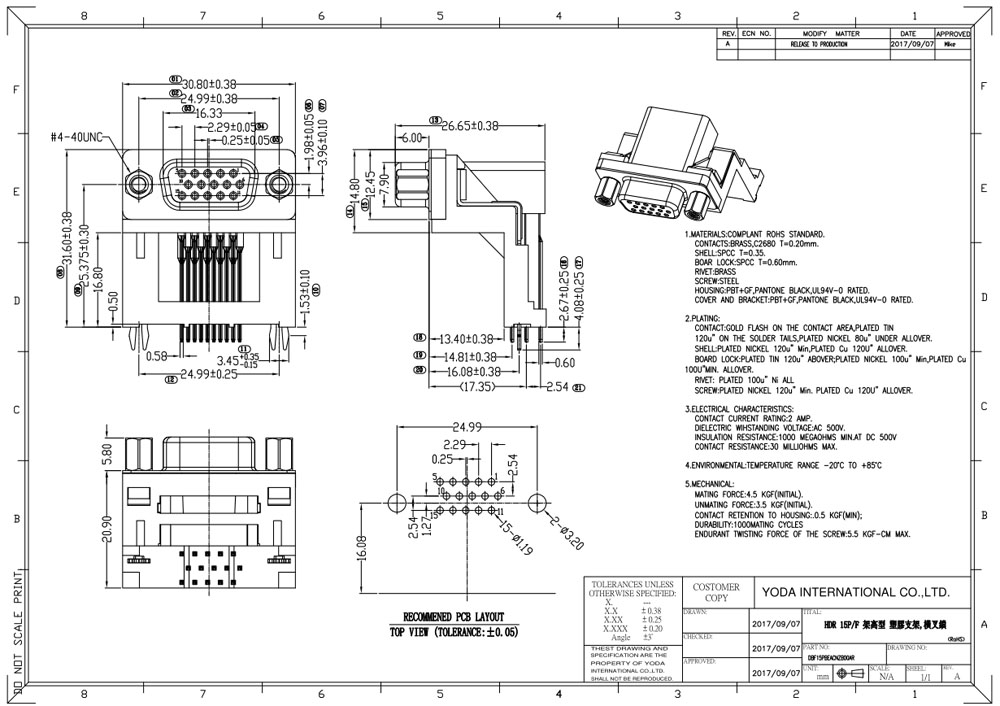

    Yoda D-sub 15 Pin Connector Drawing


    Manufacture Ability


    Yoda Electronic Connector Manufacture Ability


    Certifications


    Yoda Connector Certifications


    Application Area


    Yoda D-sub Connectors were widely used and always popular connection for data transmissions. Installed in many electronic modules for signal transmission.
    Yoda D-sub Connectors Application Area
