  • Double Holder BNC Connector

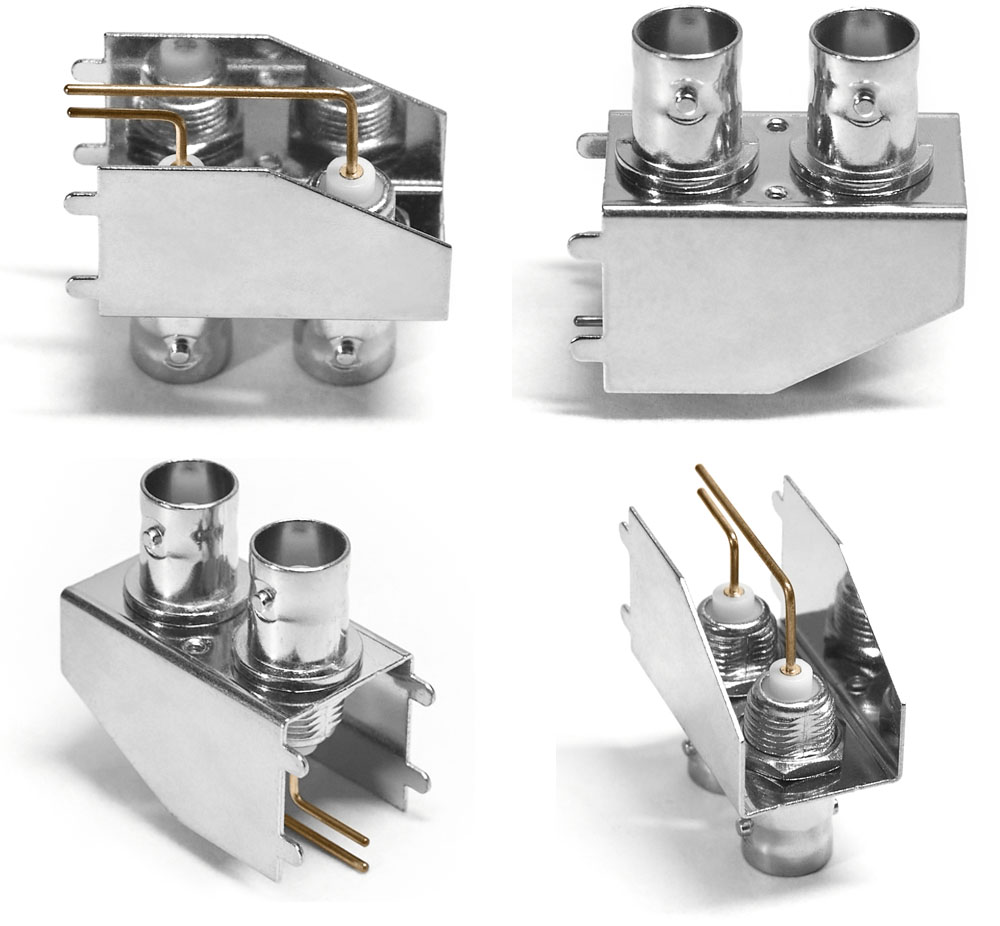

    • Double Holder BNC Connector Double Holder BNC Connector
    Double Holder BNC Connector Double Holder BNC Connector
    Double Holder BNC Connector Double Holder BNC Connector

    Double Holder BNC Connector

    Introduction：
    1. Standard impedance: 75 OHM
    2. Frequency range: DC~3G
    3. Voltage standing wave ratio: 1.3 MAX
    4. Voltage rating: 500 VRMS (maximum at sea level)
    5. Dielectric voltage: 1500 VRMS (sea level minimum)
    6. Insulation resistance: 5000 MEGOHMS
    7. Working temperature: -55℃~+155℃
    8. Relative humidity: ≤95% (temperature 40℃±2℃)

    GET A QUOTE


    Product Description

    Double Holder BNC Connector Material
    Body: ZINC / Brass Nickel Plated/Gold Plated
    Center Contact Pin: Brass Gold Plated
    Insulator : Teflon White

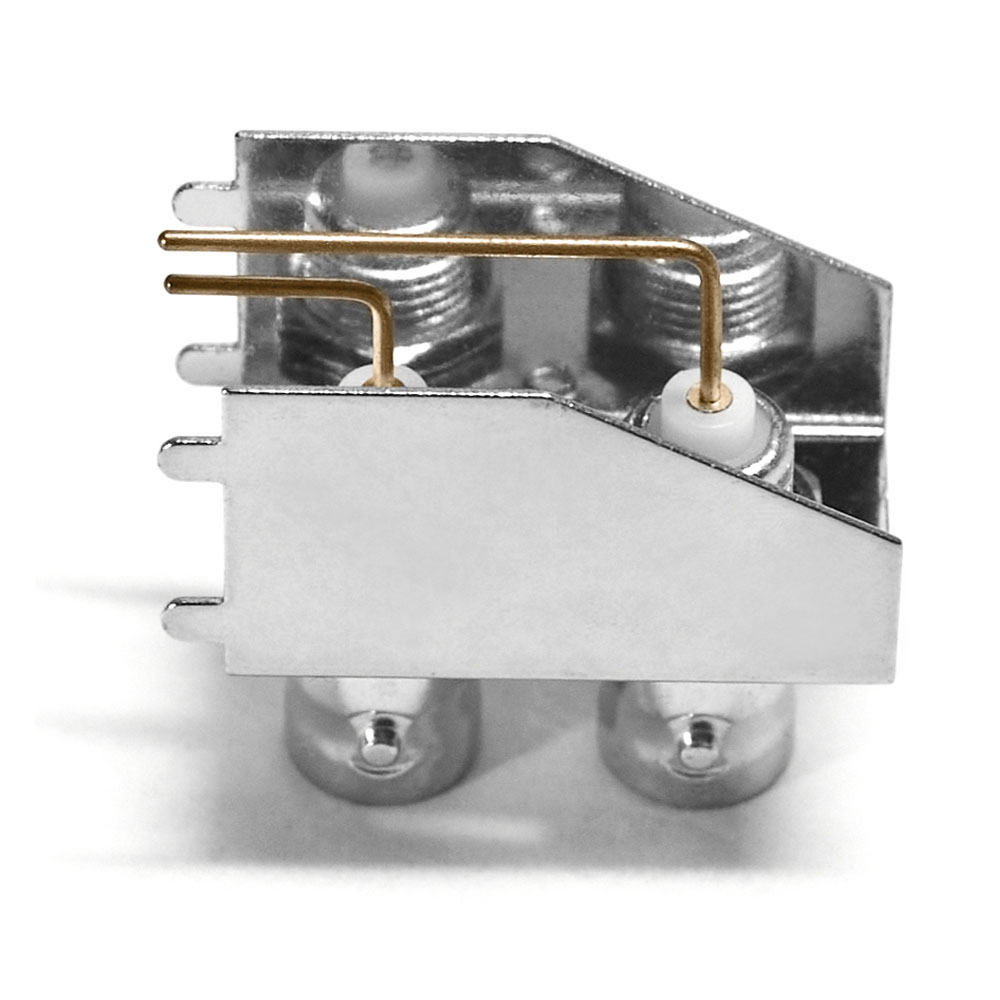

    Double Holder BNC Connector

    Features

    Double Holder BNC Connector Feature
    Compact Design for less installation space required;
    Easy quick connect and disconnect coupling;
    High cost-effective with good quality.
    Compact Design for less installation space required;
    Easy quick connect and disconnect coupling;
    High cost-effective with good quality.

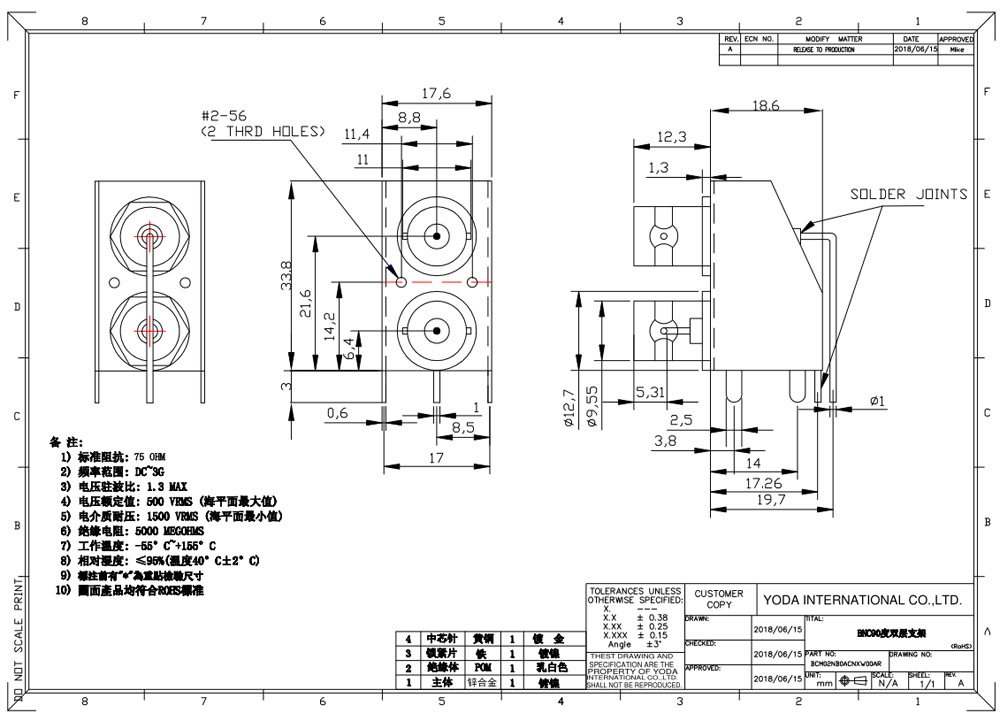

    Yoda Double Holder BNC Connector Drawing


    Manufacture Ability


    Yoda Electronic Connector Manufacture Ability


    Certifications


    Yoda Connector Certifications
