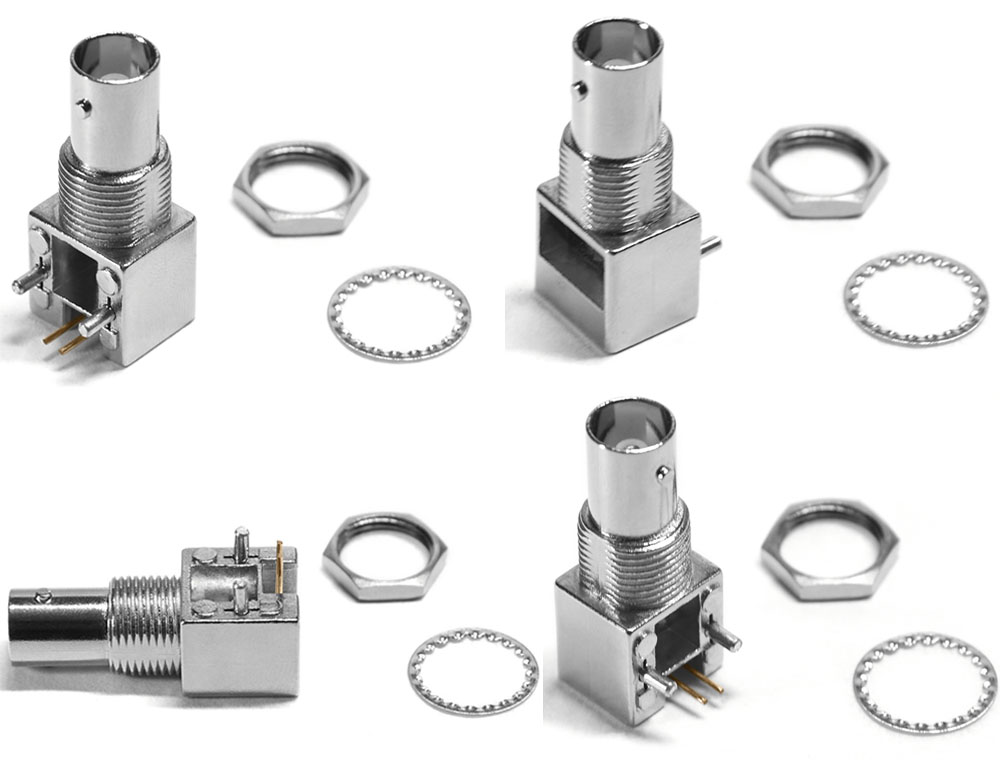

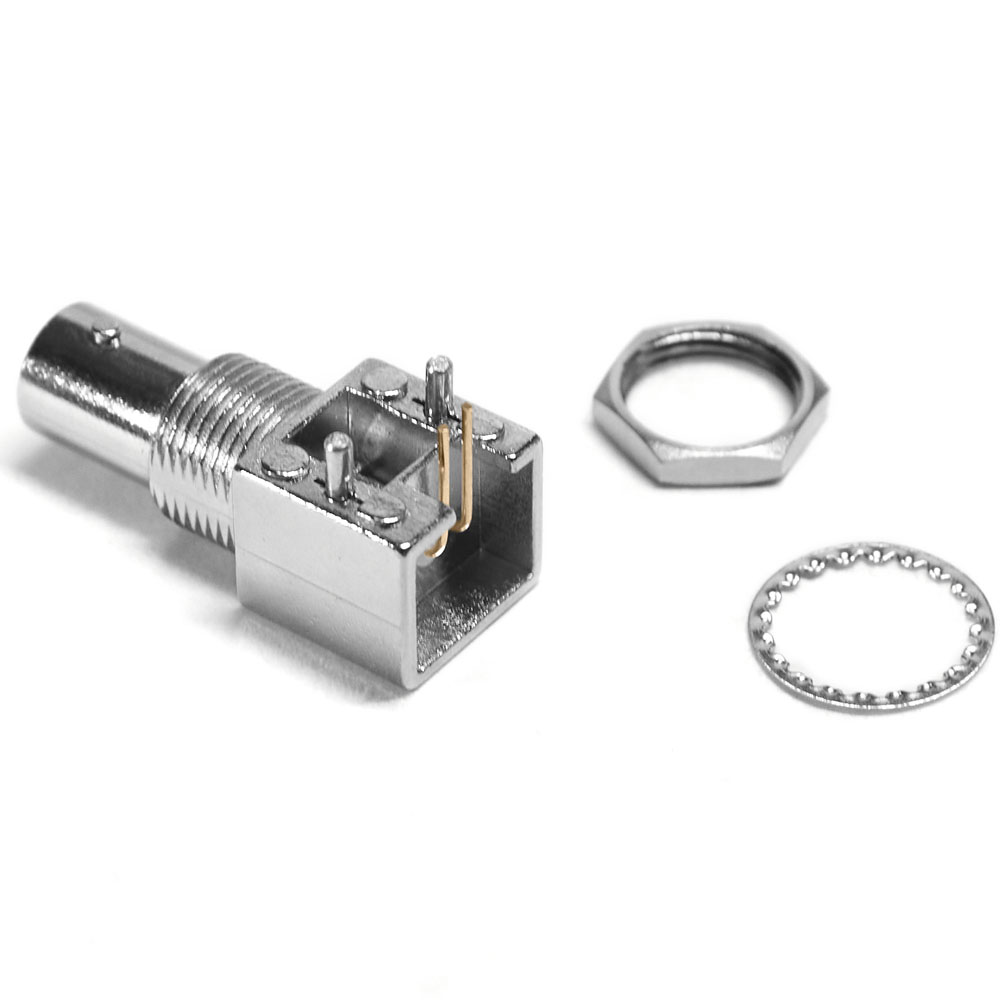

    BNC Female PCB Mount Connector

    Introduction：
    Product name: Single BNC video head
    Application: RF, Antennas, Automotive, Radios, Video, Broadcast, Telecom, Satcom
    Mounting Type: PCB Mount / Panel Mount
    Mounting Feature: 2 Hole Flange / 4 Hole Flange / Through Hole
    Mounting Feature 2: SMT / Plate Edge Mount / Bulkhead
    Impedance: 50Ω / 75Ω
    Number of Ports: Single Port / Dual Port
    Function: Waterproof / With Switch / Other

    GET A QUOTE


    Product Description

    Product name: Single BNC video head
    Application: RF, Antennas, Automotive, Radios, Video, Broadcast, Telecom, Satcom
    Mounting Type: PCB Mount / Panel Mount
    Mounting Feature: 2 Hole Flange / 4 Hole Flange / Through Hole
    Mounting Feature 2: SMT / Plate Edge Mount / Bulkhead
    Impedance: 50Ω / 75Ω
    Number of Ports: Single Port / Dual Port
    Function: Waterproof / With Switch / Other

    Yoda Double Holder BNC Connector

    Features

    1.Standard impedance: 50/75 OHM
    2.Frequency range: DC~3G
    3.voltage standing wave ratio: 1.3 MAX
    4.Voltage rating: 500 VRMS (maximum at sea level)
    5.dielectric voltage: 1500 VRMS (sea level minimum)
    6.insulation resistance: 5000 MEGOHMS
    7.working temperature: -55℃~+155℃
    8.relative humidity: ≤95% (temperature 40℃±2℃)

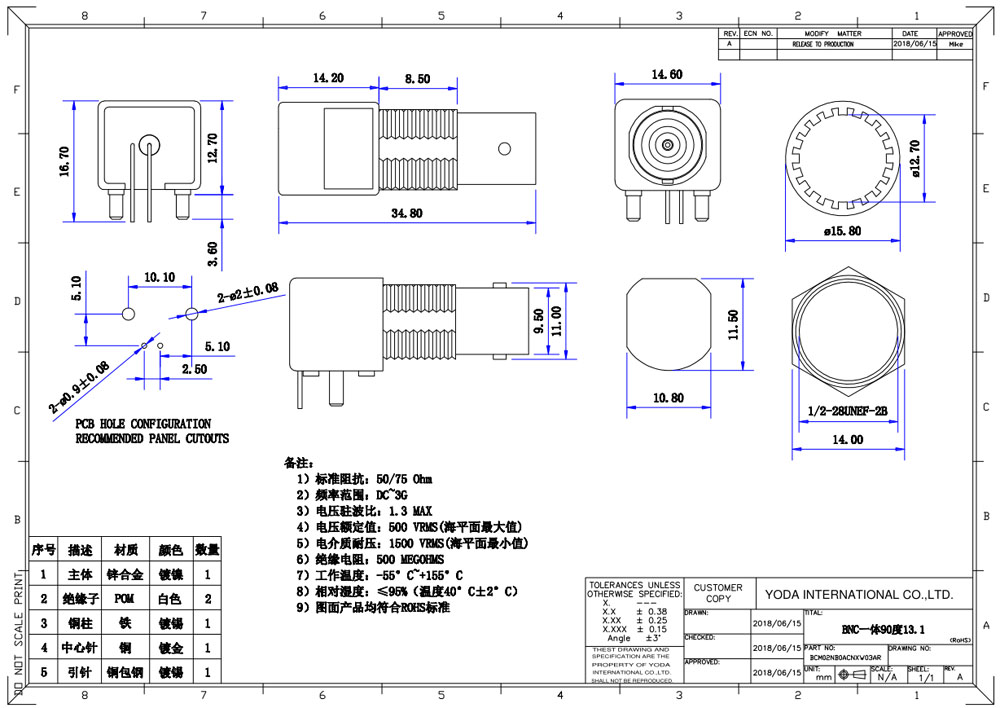

    Yoda BNC Female PCB Mount Connector Drawing
