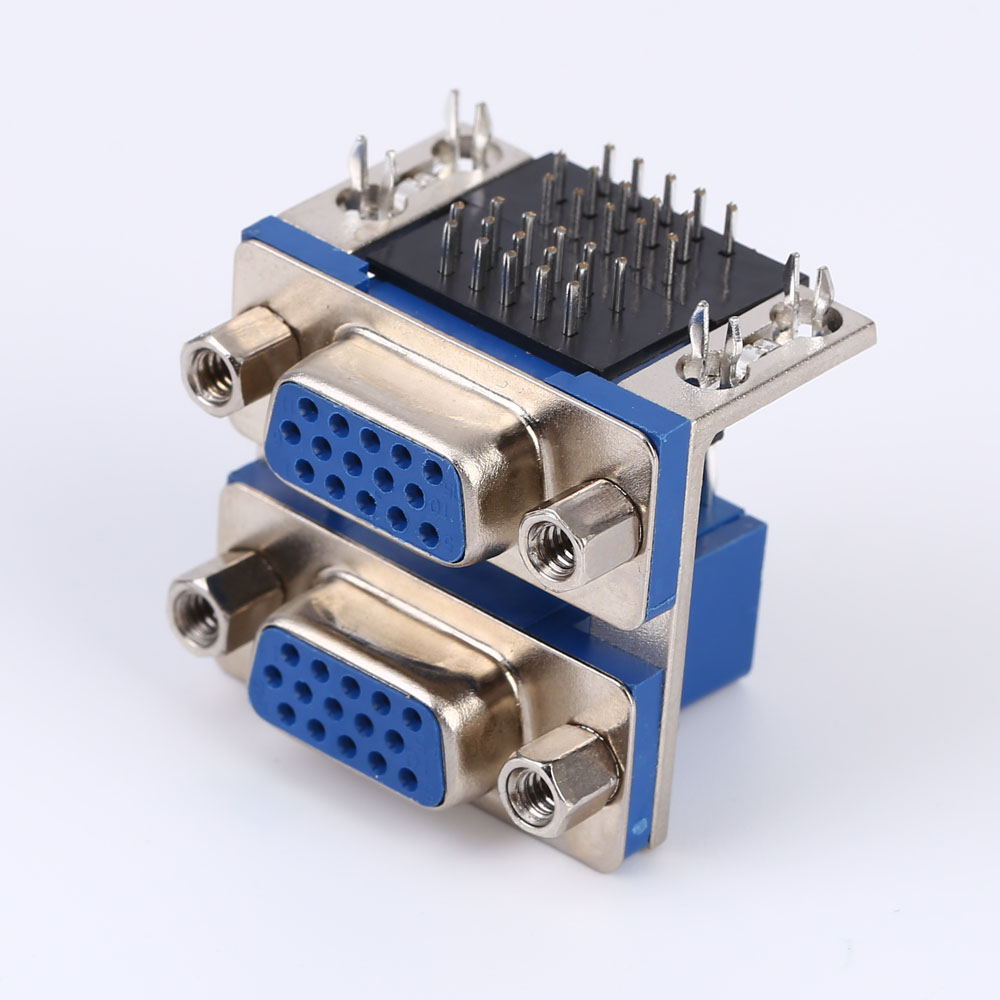

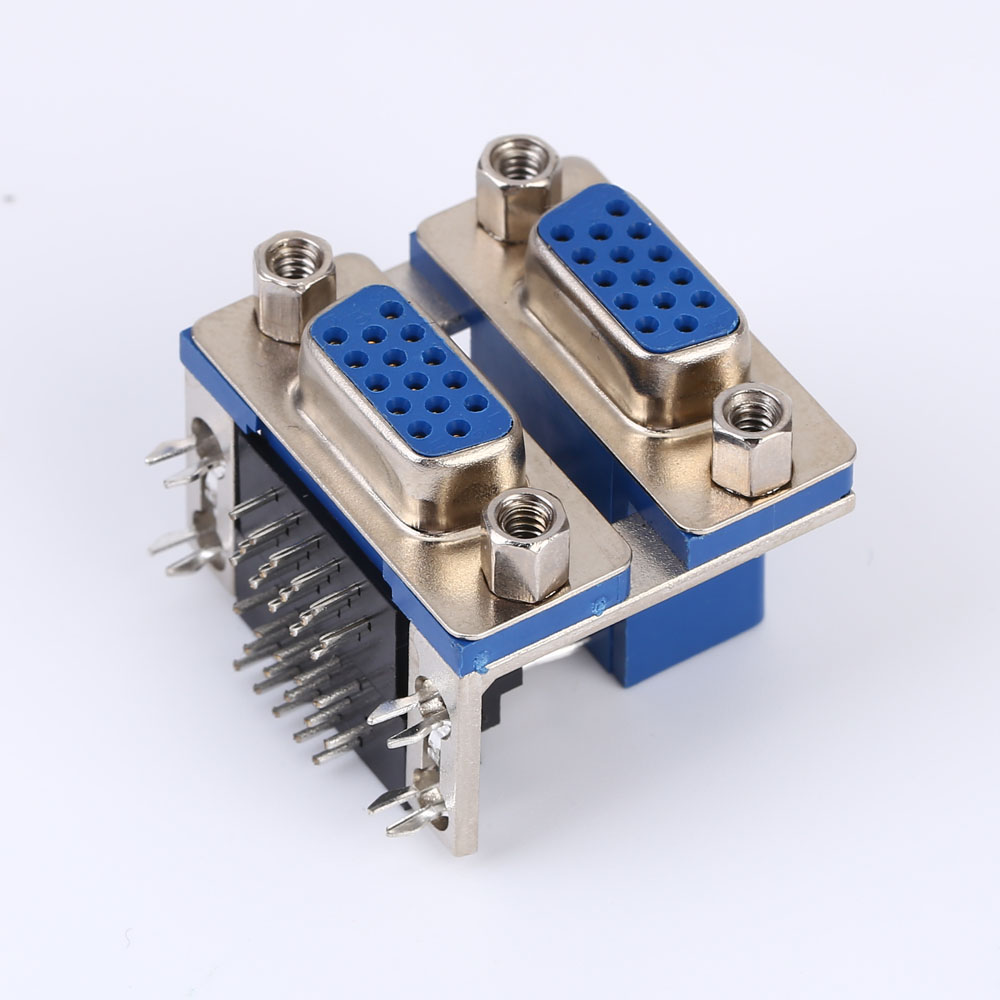

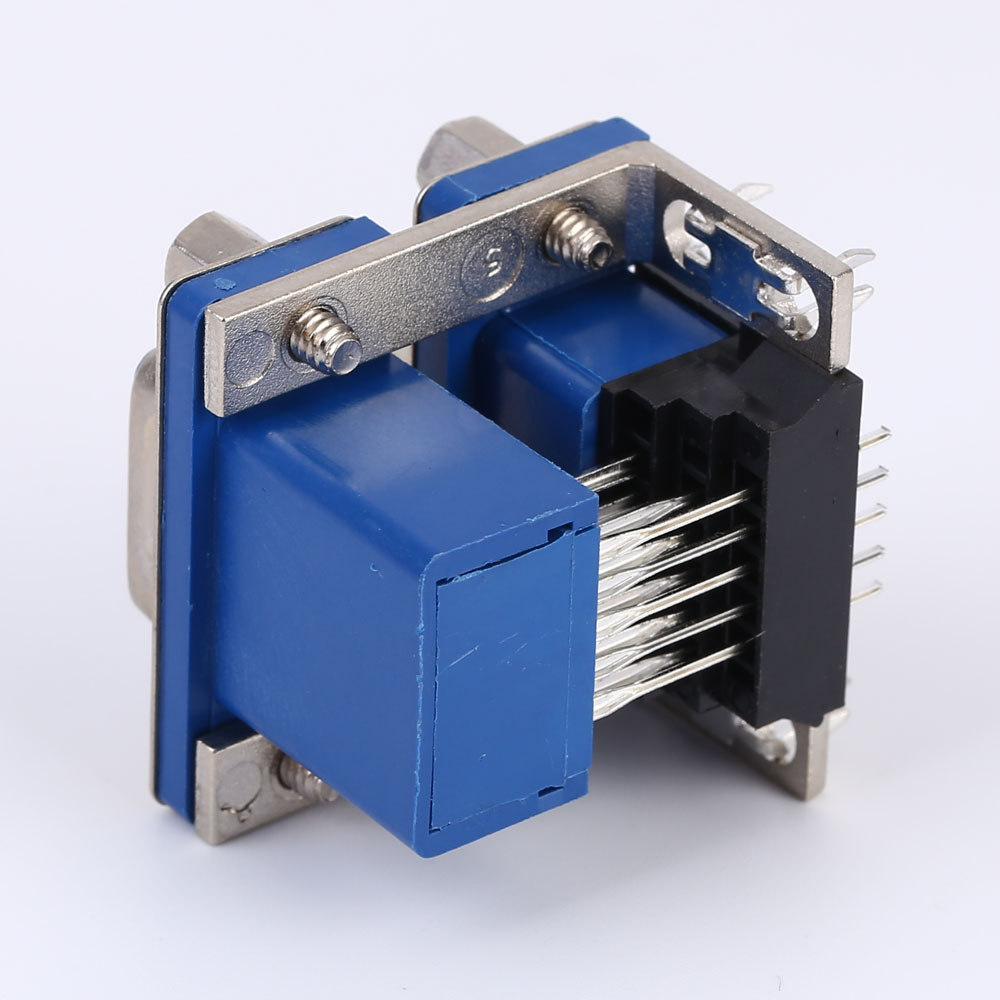

    Dual-Port Double D-Sub Connector

    Introduction:
    Model number: Double VGA Double D-Sub Connector
    Voltage: 250 VAC(RMS) max
    Current rating: 3 ampere per contact
    Contact resistance: 25 milliohms max
    lnsulation resistance: 5000 megohms min
    Dielectric withstanding voltage: 1000V AC(RMS)
    Total mating force: 6.0 kgf max
    Total Unmating Force: 1.2 Kgf Min
    Operating temperature: -55℃~+85℃

    GET A QUOTE


    Product Description

    Model number: Double VGA Double D-Sub Connector
    Voltage: 250 VAC(RMS) max
    Current rating: 3 ampere per contact
    Contact resistance: 25 milliohms max
    lnsulation resistance: 5000 megohms min
    Dielectric withstanding voltage: 1000V AC(RMS)
    Total mating force: 6.0 kgf max
    Total Unmating Force: 1.2 Kgf Min
    Name: DSUB(VGA) Connector Serise
    Rating Current: 3A~5A
    Contact Resistance: ≤50mΩ
    Insulation Resistance: ≥1000MΩ
    Ambient Temperature: -55°C ~ +105°C
    Withstand Voltage: AC 500V MS 50Hz or 60Hz 1 min
    Insertion Force: 3~25N
    Material: NYLON/PBT/LCP/PA66/Copper/SPCC
    MOQ: 500pcs

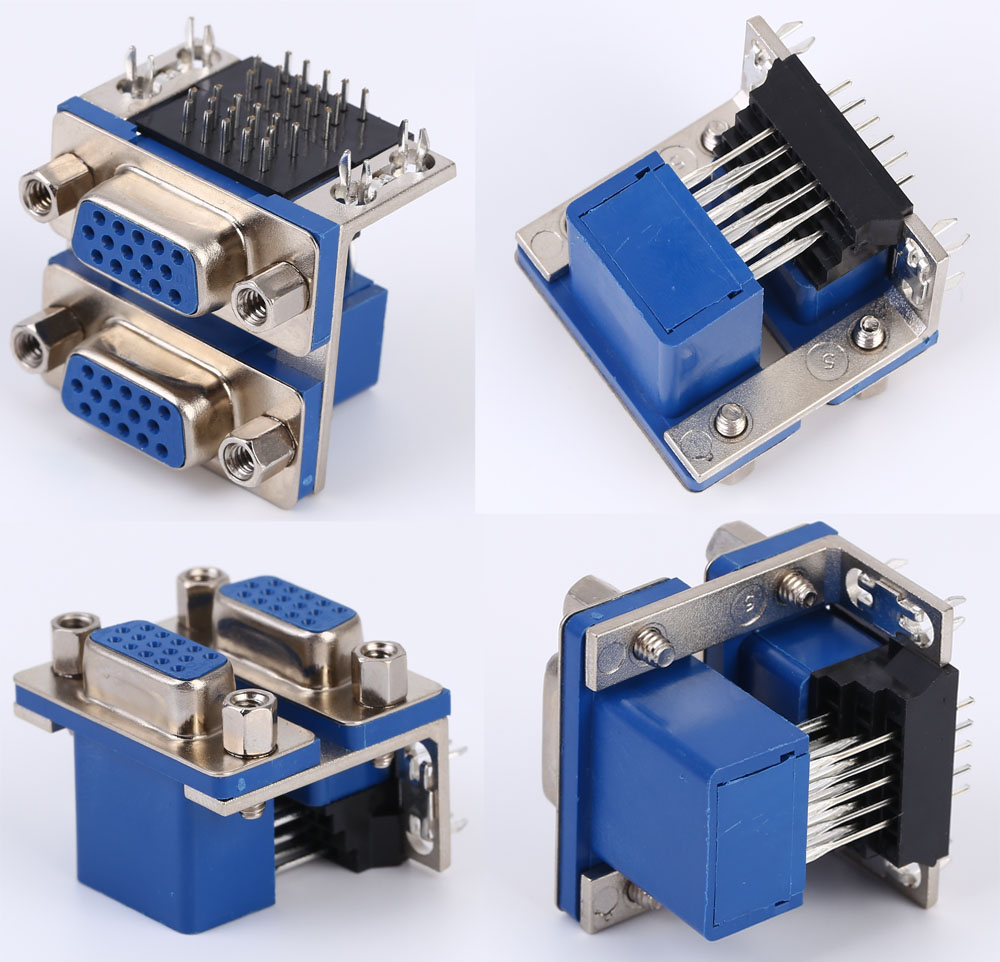

    Yoda Dual-Port Double D-Sub Connector


    Features

    Type: D-Sub Standard Connectors
    Brand: YODA, ODM
    Gender:Male/Female
    Pins: 15P
    Application area: Computer, industrial control
    Working frequency: High frequency
    Characteristic: Fire resistance/flame retardant
    Processing customization: Yes
    Manufacturing process: Stamping injection molding
    Contact material: Brass,Au Plated
    Interface Type: D-SUB
    Shape: Rectangle

    Yoda Displayport Connector R_a Smt Female Type Drawing



    Manufacture Ability


    Yoda Electronic Connector Manufacture Ability


    Certifications


    Yoda Connector Certifications


    Application Area


    Yoda D-sub Connectors were widely used and always popular connection for data transmissions. Installed in many electronic modules for signal transmission.
